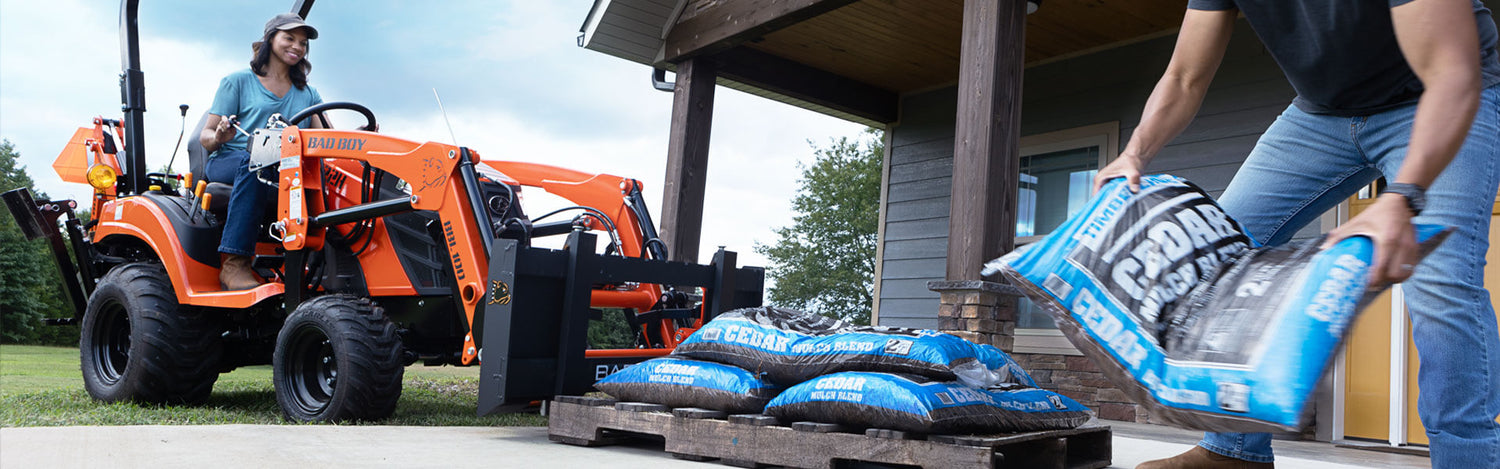

1022
- FEATURING:
- 22 HORSEPOWER
- 617 LBS. LOADER LIFT CAPACITY AT PINS
- HYDRO MAX TRANSMISSION
- TREADLE STYLE HST PEDALS
- REVERSE MOUNT ENGINE
- 2 RANGE TRANSMISSION
- INDEPENDENT PTO
- POWER STEERING
- SELECTABLE 4WD
- DIFFIRENTIAL LOCK
- 7 YEAR POWERTRAIN WARRANTY
PAYMENTS AS LOW AS
$180.00
PER MONTH*
1022 TRACTOR SPECS
Options MSRP Our Price
Tractor $16,523 $12,1171022 ENGINE
- ENGINE
- 3 CYLINDER, WATER-COOLED, DIESEL
- ENGINE HP @ RPM
- 21.5
- DISPLACEMENT (IN.)
- 60.6
- NUMBER OF CYLINDERS
- 3
- FUEL TANK (GAL.)
- 6.6
1022 DRIVETRAIN
- TRANSMISSION
- HST
- NUMBER OF SPEEDS
- 2 RANGE
- CLUTCH
- DRY SINGLE PLATE
- BRAKES
- WET, MULTI-DISC
1022 HYDRAULICS
- TYPE
- POWER ASSISTED HYDRO-STATIC
- TOTAL HYDRAULIC FLOW (POWER STEERING + IMPLEMENT)
- 6.3 (2.1+4.2) / 23.8 (8+15.8)
- 3-POINT HITCH
- LIMITED CAT 1
- REAR REMOTE VALVE
- OPTIONAL (UP TO 1)
- 3-POINT HITCH LIFT CAPACITY @ 24" BEHIND LIFT POINT (LBS.)
- 679
1022 DIMENSIONS
- OVERALL LENGTH
- 94.2"
- OVERALL WIDTH
- 44.5"
- OVERALL HEIGHT
- 86.6"
- WHEELBASE
- 53.1"
- MINIMUM GROUND CLEARANCE
- 8.3"
- WEIGHT
- 1,433 LBS.
1022 PTO
- TYPE
- INDEPENDENT
- REAR (MID) PTO SPEED
- 540
- PTO HP
- 15.4
1022 ELECTRICAL
- BATTERY
- 12 V, 425 CCA
- ALTERNATOR
- 12 V, 40 A
1022 WHEELS & TIRES
- IND (FRONT)
- 18X8.50-10
- IND (REAR)
- 26X12-12
1022 LOADER - MODEL BBL100
- STANDARD BUCKET SIZE (IN.)
- 48
- MAXIMUM LIFT HEIGHT (IN.)
- 72.7
- DIG DEPTH (IN.)
- 4.0
- LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.)
- 617
- BREAKOUT FORCE (LBS.)
- 1,253
- SHIPPING WEIGHT (LBS.)
- 438
1022 BACKHOE - MODEL BBH100
- STANDARD BUCKET SIZE (IN.)
- 12
- TYPE
- SUBFRAME-MOUNTED, QUICK ATTACH
- MAXIMUM DIG DEPTH (IN.)
- 66
- DIG FORCE BUCKET (LBS.)
- 1,975
- SHIPPING WEIGHT (LBS.)
- 747
THE PERFECT FIT
The 1022 can get down and dirty with the best of them. This entry to our subcompact tractor lineup is perfect for small property owners. Get where other tractors can't and help you work with an attitude.
POWER AND PERFORMANCE
The clean, Tier 4 Certified quiet and powerful diesel engine boasts 22 horsepower. This tractor offers over 600 pounds of lift capacity, while the hydrostatic power steering makes getting around easy and effortless.
GET OPTIONAL MID-MOUNT MOWER DECK
We're bringing the legendary mower deck strength found on our commercial-grade mowers to the 1022. The easy-to-mount, drive-over deck features a width of 54˝ and cutting height adjustment from 1˝ to 4˝ for a precise mowing performance.
1025
Options MSRP Our Price
Tractor $20,038 $14,695- FEATURING:
- 25 HORSEPOWER
- 992 LBS. LOADER LIFT CAPACITY AT PINS
- HYDRO MAX TRANSMISSION
- DUAL HST PEDALS
- 2 RANGE TRANSMISSION
- INDEPENDENT PTO
- POWER STEERING
- SELECTABLE 4WD
- DIFFIRENTIAL LOCK
- 7 YEAR POWERTRAIN WARRANTY
PAYMENTS AS LOW AS
$213.00
PER MONTH*
1025 TRACTOR SPECS
1025 ENGINE
- ENGINE
- 3 CYLINDER, WATER-COOLED, DIESEL
- ENGINE HP @ RPM
- 24.6
- DISPLACEMENT (IN.)
- 77.3
- NUMBER OF CYLINDERS
- 3
- FUEL TANK (GAL.)
- 5.8
1025 DRIVETRAIN
- TRANSMISSION
- HST
- NUMBER OF SPEEDS
- 2 RANGE
- CLUTCH
- NO
- BRAKES
- WET, MULTI-DISC
1025 HYDRAULICS
- TYPE
- POWER ASSISTED HYDRO-STATIC
- TOTAL HYDRAULIC FLOW (POWER STEERING + IMPLEMENT)
- 7.0 (2.8+4.2) / 25.7 (10.5+15.8)
- 3-POINT HITCH
- CAT 1
- REAR REMOTE VALVE
- N/A
- 3-POINT HITCH LIFT CAPACITY @ 24" BEHIND LIFT POINT (LBS.)
- 1101
1025 DIMENSIONS
- OVERALL LENGTH
- 104"
- OVERALL WIDTH
- 45.8"
- OVERALL HEIGHT
- 91.3"
- WHEELBASE
- 57.5"
- MINIMUM GROUND CLEARANCE
- 9.4"
- WEIGHT
- 1,638 LBS.
1025 PTO
- TYPE
- INDEPENDENT
- REAR (MID) PTO SPEED
- 540
- PTO HP
- 18.8
1025 ELECTRICAL
- BATTERY
- 12 V, 425 CCA
- ALTERNATOR
- 12 V, 40 A
1025 WHEELS & TIRES
- IND (FRONT)
- 23X8.50-12
- IND (REAR)
- 12-16.5
1025 LOADER - MODEL BBL105
- STANDARD BUCKET SIZE (IN.)
- 50
- MAXIMUM LIFT HEIGHT (IN.)
- 75.5
- DIG DEPTH (IN.)
- 4.6
- LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.)
- 992
- BREAKOUT FORCE (LBS.)
- 1,531
- SHIPPING WEIGHT (LBS.)
- 573
1025 BACKHOE - MODEL BBH105
- STANDARD BUCKET SIZE (IN.)
- 12
- TYPE
- SUBFRAME-MOUNTED, QUICK ATTACH
- MAXIMUM DIG DEPTH (IN.)
- 76
- DIG FORCE BUCKET (LBS.)
- 2,020
- SHIPPING WEIGHT (LBS.)
- 816
OPTIONAL MID-MOUNT MOWER DECK
We're bringing the legendary mower deck strength found on our commercial-grade mowers to the 1025. The easy-to-mount, drive-over deck features a cutting height adjustment from 1˝ to 5˝ for a precise mowing performance.
DRIVING A BETTER VALUE
This tractor is ready to outperform anything in its class at a price that's even tougher to beat. With 25 horsepower, over 900 pounds of full lifting capacity, and our easy-to-drive automatic hydro-static transmission, it can tackle any job for small landowners.
GET WHERE YOU NEED TO GO
The 1025 is small enough to go where bigger tractors can't, and powerful enough to takedown any task. This sub-compact tractor can squeeze into barn stalls and through gates, so you can go even further.

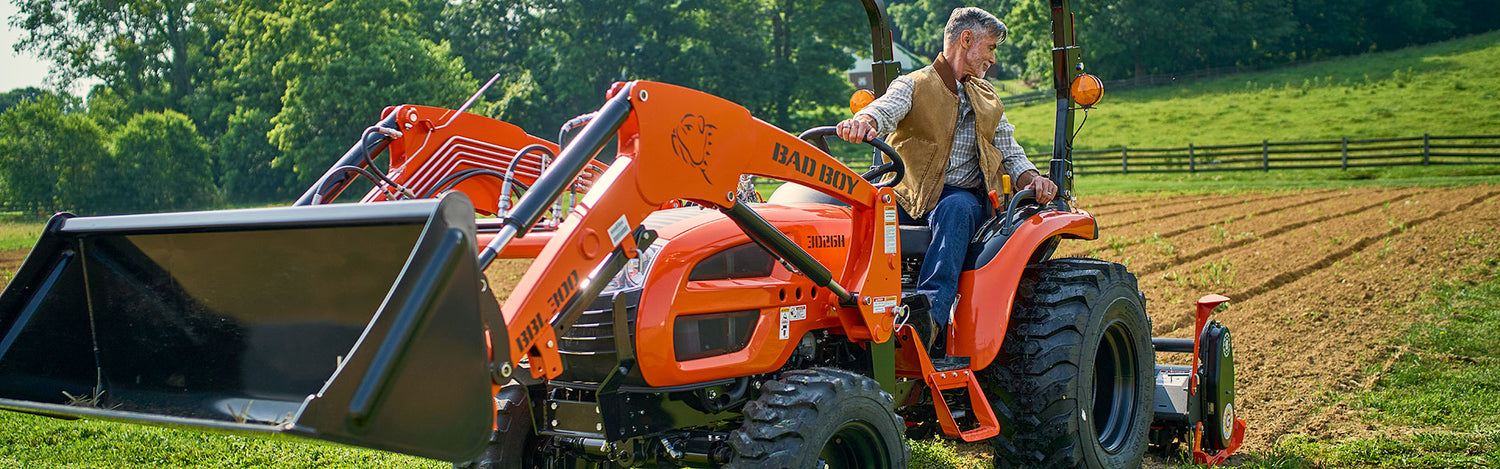

3026
Options MSRP Our Price
Tractor $23,220 $17,028- FEATURING:
- 25 HORSEPOWER
- 1,314 LBS. LOADER LIFT CAPACITY AT PINS
- HYDRO MAX TRANSMISSION
- DUAL HST PEDALS
- CAST IRON AXLES
- REVERSE MOUNT ENGINE
- 3 RANGE TRANSMISSION
- POWER STEERING
- SELECTABLE 4WD
- DIFFERENTIAL LOCK
- 6 YEAR POWERTRAIN WARRANTY
PAYMENTS AS LOW AS
$243.00
PER MONTH*
3026 TRACTOR SPECS
3026 ENGINE
- ENGINE
- 3 CYLINDER, WATER-COOLED, DIESEL
- ENGINE HP @ RPM
- 25
- DISPLACEMENT (IN.)
- 71.7
- NUMBER OF CYLINDERS
- 3
- FUEL TANK (GAL.)
- 6.0
3026 DRIVETRAIN
- TRANSMISSION
- HST
- NUMBER OF SPEEDS
- 3 RANGE
- CLUTCH
- DRY SINGLE PLATE
- BRAKES
- WET, MULTI-DISC
3026 HYDRAULICS
- TYPE
- POWER ASSISTED HYDRO-STATIC
- TOTAL HYDRAULIC FLOW (POWER STEERING + IMPLEMENT)
- 7.4 (3.1+4.3) / 28.1 (11.7+16.4)
- 3-POINT HITCH
- CAT 1
- REAR REMOTE VALVE
- OPTIONAL (UP TO 1)
- 3-POINT HITCH \ CAPACITY @ 24" BEHIND LIFT POINT (LBS.)
- 974
3026 DIMENSIONS
- OVERALL LENGTH
- 110"
- OVERALL WIDTH
- 53.8"
- OVERALL HEIGHT
- 91.4"
- WHEELBASE
- 65.7"
- MINIMUM GROUND CLEARANCE
- 16.4"
- WEIGHT
- 2,106 LBS.
3026 PTO
- TYPE
- LIVE
- REAR (MID) PTO SPEED
- 540/960
- PTO HP
- 18
3026 ELECTRICAL
- BATTERY
- 12 V, 425 CCA
- ALTERNATOR
- 12 V, 50 A
3026 WHEELS & TIRES
- IND (FRONT)
- 25X8.50-14
- IND (REAR)
- 14X17.5
3026 LOADER - MODEL BBL300
- STANDARD BUCKET SIZE (IN.)
- 54
- MAXIMUM LIFT HEIGHT (IN.)
- 86
- DIG DEPTH (IN.)
- 4.2
- LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.)
- 1,314
- BREAKOUT FORCE (LBS.)
- 1,960
- SHIPPING WEIGHT (LBS.)
- 654
3026 BACKHOE - MODEL BBH200
- STANDARD BUCKET SIZE (IN.)
- 12
- TYPE
- SUBFRAME-MOUNTED, QUICK ATTACH
- MAXIMUM DIG DEPTH (IN.)
- 76
- DIG FORCE BUCKET (LBS.)
- 2,050
- SHIPPING WEIGHT (LBS.)
- 827
PERFORMANCE MEETS STRENGTH
The 3026 carries unbeatable Compact performance for your farm, business or property. The longer frame size, larger tires and higher ground clearance can handle just about any workload you throw at it.
HARD WORK MADE EASY
The power is in your hands with the easy-to-read digital control display. Operate anything from the PTO to the front loader, right at your fingertips. Power steering makes the job even easier with effortless direction control.
YOU'RE IN THE DRIVER'S SEAT
Every Bad Boy features legendary comfort and quality. The premium seat reduces fatigue so you can keep pushing forward. The adjustable seat flips up and back for ideal rear backhoe operation.

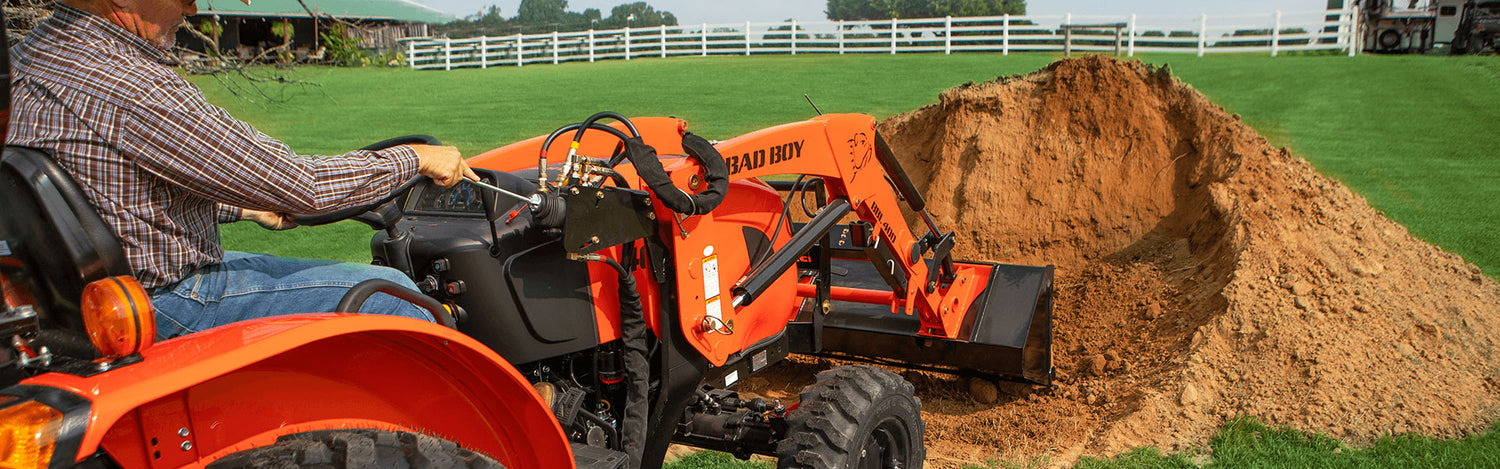

4025
Options MSRP Our Price
Tractor $27,394 $20,089- FEATURING:
- 25 HORSEPOWER
- 2,200 LBS. LOADER LIFT CAPACITY AT PINS
- HYDRO MAX TRANSMISSION
- METAL HOOD & FENDERS
- CAST IRON AXLES
- DUAL HST PEDALS
- 3 RANGE TRANSMISSION
- INDEPENDENT PTO
- POWER STEERING
- SELECTABLE 4WD
- DIFFERENTIAL LOCK
- 6 YEAR POWERTRAIN WARRANTY
PAYMENTS AS LOW AS
$285.00
PER MONTH*
4025 TRACTOR SPECS
4025 ENGINE
- ENGINE
- 3 CYLINDER, WATER-COOLED, DIESEL
- ENGINE HP @ RPM
- 25
- DISPLACEMENT (IN.)
- 104.5
- NUMBER OF CYLINDERS
- 3
- FUEL TANK (GAL.)
- 7.1
4025 DRIVETRAIN
- TRANSMISSION
- HST
- NUMBER OF SPEEDS
- 3 RANGE
- CLUTCH
- NO
- BRAKES
- WET, MULTI-DISC
4025 HYDRAULICS
- TYPE
- HYDRO-STATIC POWER STEERING
- TOTAL HYDRAULIC FLOW (POWER STEERING + IMPLEMENT)
- 11.5 (4+7.5)
- 3-POINT HITCH
- CAT 1
- REAR REMOTE VALVE
- OPTIONAL (UP TO 2)
- 3-POINT HITCH LIFT CAPACITY @ 24" BEHIND LIFT POINT (LBS.)
- 2,425
4025 DIMENSIONS
- OVERALL LENGTH
- 134.88"
- OVERALL WIDTH
- 56.7"
- OVERALL HEIGHT
- 104.06"
- WHEELBASE
- 65.7"
- MINIMUM GROUND CLEARANCE
- 13.1"
- WEIGHT
- 2,970 LBS.
4025 PTO
- TYPE
- INDEPENDENT
- REAR (MID) PTO SPEED
- 540
- PTO HP
- 19.1
4025 ELECTRICAL
- BATTERY
- 12 V, 540 CCA
- ALTERNATOR
- 12 V, 50 A
4025 WHEELS & TIRES
- IND (FRONT)
- 25X8.50-14
- IND (REAR)
- 15-19.5
4025 LOADER - MODEL BBL400
- STANDARD BUCKET SIZE (IN.)
- 62
- MAXIMUM LIFT HEIGHT (IN.)
- 104
- DIG DEPTH (IN.)
- 1.8
- LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.)
- 2,200
- BREAKOUT FORCE (LBS.)
- 3,660
- SHIPPING WEIGHT (LBS.)
- 1,007
4025 BACKHOE - MODEL BBH400
- STANDARD BUCKET SIZE (IN.)
- 16
- TYPE
- SUBFRAME-MOUNTED, QUICK ATTACH
- MAXIMUM DIG DEPTH (IN.)
- 92.2
- DIG FORCE BUCKET (LBS.)
- 4,380
- SHIPPING WEIGHT (LBS.)
- 1,270
THE BEST FRAME IN THE GAME
Never back down from a challenge because this tractor is as tough as they come. The 4025's frame is the biggest in its class and with more ground clearance, so it can breeze through chores usually reserved for much larger tractors.
BETTER RANGE
The 4025's three-range hydro-static transmission gives you flexible drive options. Go with low or medium when you're doing the work, and high during transport.
GET HITCHED
The Bad Boy tough 3-point hitch is made to last longer and work harder. Built from heavy-gauge, welded and fabricated steel, it's more than ready to pull its weight around your property.

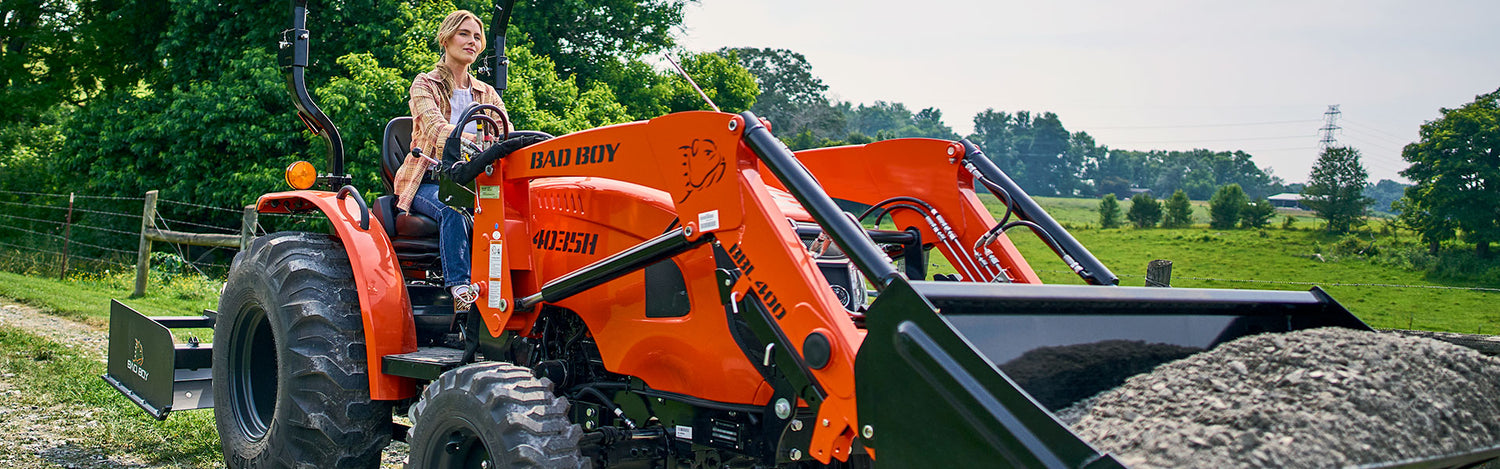

4035
Options MSRP Our Price
Tractor $31,402 $23,028- FEATURING:
- 35 HORSE POWER
- 2,200 LBS. LOADER LIFT CAPACITY AT PINS
- METAL HOOD AND FENDERS
- CAST IRON AXLES
- FACTORY CAB WITH HEAT AND AIR AVAILABLE
-
EASY TO ADJUST PIN STYLE STABLIZERS
-
CRUISE CONTROL
-
HYDRO MAX TRANSMISSION
-
DUAL HST PEDALS
-
3 RANGE TRANSMISSION
-
INDEPENDENT PTO
-
POWER STEERING
-
SELECTABLE 4WD
-
DIFFERENTIAL LOCK
-
6 YEAR POWERTRAIN WARRANTY
PAYMENTS AS LOW AS
$319.00
PER MONTH (4035H)*
4035 TRACTOR SPECS
4035 ENGINE
- ENGINE
- 3 CYLINDER, WATER-COOLED, DIESEL
- ENGINE HP @ RPM
- 35
- DISPLACEMENT (IN.)
- 104.5
- NUMBER OF CYLINDERS
- 3
- FUEL TANK (GAL.)
- 7.1
4035 DRIVETRAIN
- TRANSMISSION
- HST
- NUMBER OF SPEEDS
- 3 RANGE
- CLUTCH
- NO
- BRAKES
- WET, MULTI-DISC
4035 HYDRAULICS
- TYPE
- HYDRO-STATIC POWER STEERING
- TOTAL HYDRAULIC FLOW (POWER STEERING + IMPLEMENT)
- 12.6 (4.4+8.2)
- 3-POINT HITCH
- CAT 1
- REAR REMOTE VALVE
- OPTIONAL (UP TO 2)
- 3-POINT HITCH LIFT CAPACITY @ 24" BEHIND LIFT POINT (LBS.)
- 2,425
4035 DIMENSIONS
- OVERALL LENGTH
- 134.88"
- OVERALL WIDTH
- 4035H - 56.7" | 4035CH - 55.6"
- OVERALL HEIGHT
- 4035H - 97" | 4035CH - 86"
- WHEELBASE
- 65.7"
- MINIMUM GROUND CLEARANCE
- 13.1"
- WEIGHT
- 4035H - 3,164 LBS. | 4035CH - 3,551 LBS.
4035 PTO
- TYPE
- INDEPENDENT
- REAR (MID) PTO SPEED
- 540
- PTO HP
- 29.5
4035 ELECTRICAL
- BATTERY
- 12 V, 540 CCA
- ALTERNATOR
- 12 V, 50 A
4035 WHEELS & TIRES
- IND (FRONT)
- 28X8.50-15
- IND (REAR)
- 43X16.00-20
4035 LOADER - MODEL BBL400
- STANDARD BUCKET SIZE (IN.)
- 62
- MAXIMUM LIFT HEIGHT (IN.)
- 104
- DIG DEPTH (IN.)
- 1.8
- LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.)
- 2,200
- BREAKOUT FORCE (LBS.)
- 3,660
- SHIPPING WEIGHT (LBS.)
- 1,007
4035 BACKHOE - MODEL BBH400
- STANDARD BUCKET SIZE (IN.)
- 16
- TYPE
- SUBFRAME-MOUNTED, QUICK ATTACH
- MAXIMUM DIG DEPTH (IN.)
- 92.2
- DIG FORCE BUCKET (LBS.)
- 4,380
- SHIPPING WEIGHT (LBS.)
- 1,270
WORK IN ANY WEATHER
The 4035 Series is available with or without a fully climate-controlled, all-weather cab. So bring on the rain, snow or blistering heat because nothing can stop you from working with an attitude.
GET MORE FROM COMPACT
The 4035 Series is the largest tractor in the Bad Boy Tractor stable with 35hp. The eco-friendly "A" Series diesel engine sips fuel while providing maximum performance in speed, power and lifting up to 2,200 lbs.
HYDRO MAX TRANSMISSION
Say goodbye to pre-set engine throttle positions. The 4035 Series engine RPM automatically increases or decreases as you move the foot pedals. Hydro Max is quiet, smooth, easy and eco-smart.
5055
Options MSRP Our Price
Tractor/ $39,379 $28,878Ag or Industrial Tires doesn't change pricing
- FEATURING:
- 55 HORSEPOWER
- 2,700 LBS. LOADER LIFT CAPACITY AT PINS
- HYDRO MAX OR SHUTTLE SHIFT TRANSMISSION OPTION
- OPTIONAL CLIMATE-CONTROLLED CAB WITH LEATHER, HEATED SEAT
- POWER STEERING
- EASY TO ADJUST PIN STYLE STABILIZER
- CRUISE CONTROL
- 4WD
PAYMENTS AS LOW AS
$394.00
PER MONTH (5055S)*
5055 TRACTOR SPECS
5055 ENGINE
- MODEL
- A2300T3-UTR_4
- FUEL SYSTEM
- WATER-COOLED DIESEL
- DISPLACEMENT, IN
- 139.5
- NUMBER OF CYLINDERS
- 4
- FUEL TANK SIZE, GAL
- 11.8
- RATED ENGINE POWER, HP
- 55
- RATED SPEED, RPM
- 2600
- MAX PTO POWER, HP
- 44
- DPF / SCR / DOC
- DPF / DOC
5055 TRANSMISSION
- TYPE
- 5055S/CS - SYNCHRO |5055H/CH - HST
- NUMBER OF GEARS
- 5055S/CS - 16F / 16R | 5055H/CH - 4 RANGE
5055 HYDRAULICS
- MAXIMUM TOTAL FLOW, GPM
- 5055S/CS - 16.4 | 5055H/CH - 15.7
- IMPLEMENT PUMP CAP, GPM
- 5055S/CS - 11.4 | 5055H/CH - 10.7
- STEERING PUMP CAP, GPM
- 5
- 3P CATEGORY
- 1
- HITCH LIFT CAPACITY, LB
- 3,306
- AT 24 INCHES BEHIND LINK ENDS, LB
- 2,425
5055 DIMENSIONS
- OVERALL LENGTH, IN, 3P
- 127.4
- OVERALL WIDTH, IN
- 64.9
- HEIGHT TO TOP OF ROPS, IN
- 5055S/H - 98.4 | 5055CS/CH - 97
- WHEELBASE, IN
- 71.1
- MIN. GROUND CLEARANCE, IN
- 15.5
- WEIGHT, LB
- 5055S/H - 3,836 | 5055CS/CH - 4,349
5055 PTO
- 540, 540E
- 584, 791
5055 LOADER - MODEL BBL500
- STANDARD BUCKET SIZE (IN.)
- 72
- MAXIMUM LIFT HEIGHT (IN.)
- 106.6
- DIG DEPTH (IN.)
- 3.1
- LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.)
- 2,700
- BREAKOUT FORCE (LBS.)
- 3,660
- SHIPPING WEIGHT (LBS.)
- 1,075
5055 BACKHOE - MODEL BBH500
- STANDARD BUCKET SIZE (IN.)
- 16
- MAXIMUM DIG DEPTH (IN.)
- 91.2
- SHIPPING WEIGHT (LBS.)
- 1,500
EVEN MORE POWER
This tractor features the most horsepower in our lineup. That gives you up to 2,700 lbs. loader lift capacity to get more done.

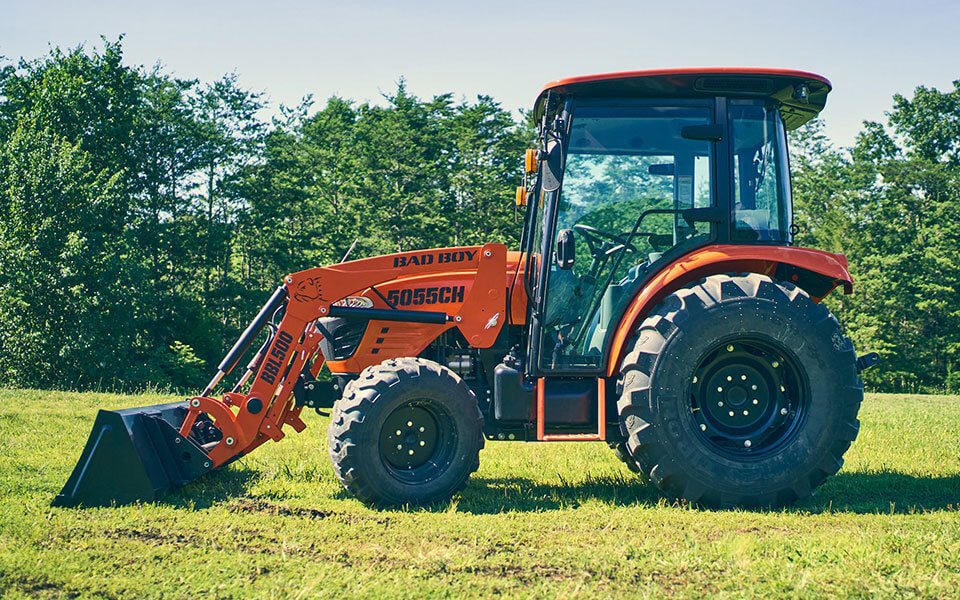

PICK YOUR SET-UP
The 5055 is available in with a climate-controlled factory cab or an open station. Choose the one that’s right for you, and work with an attitude your way.
VERSATILE HITCH
Our 3-point hitch is built right with heavy-gauge, welded and fabricated steel. You can put it to good use with our wide range of tractor implements.
5045
Options MSRP Our Price
Tractor/ $36,197 $26,545
Ag or Industrial Tires doesn't change pricing
- FEATURING:
- 48 HORSE POWER
- 2,700 LBS. LOADER LIFT CAPACITY AT PINS
- HYDRO MAX OR SHUTTLE SHIFT TRANSMISSION OPTION
- OPTIONAL CLIMATE-CONTROLLED CAB WITH LEATHER, HEATED SEAT
- POWER STEERING
- EASY TO ADJUST PIN STYLE STABILIZER
- CRUISE CONTROL
- 4WD
PAYMENTS AS LOW AS
$366.00
PER MONTH (5055S)*
5045 TRACTOR SPECS
5045 ENGINE
- MODEL
- A2300N2-UTR_4
- FUEL SYSTEM
- WATER-COOLED DIESEL
- DISPLACEMENT, IN
- 139.5
- NUMBER OF CYLINDERS
- 4
- FUEL TANK SIZE, GAL
- 11.8
- RATED ENGINE POWER, HP
- 48
- RATED SPEED, RPM
- 2600
- MAX PTO POWER, HP
- 38.4
- DPF / SCR / DOC
- DPF / DOC
5045 TRANSMISSION
- TYPE
- 5045S/CS - SYNCHRO |5045H/CH - HST
- NUMBER OF GEARS
- 5045S/CS - 16F / 16R | 5045H/CH - 4 RANGE
5045 HYDRAULICS
- MAXIMUM TOTAL FLOW, GPM
- 5045S/CS - 16.4 | 5045H/CH - 15.7
- IMPLEMENT PUMP CAP, GPM
- 5045S/CS - 11.4 | 5045H/CH - 10.7
- STEERING PUMP CAP, GPM
- 5
- 3P CATEGORY
- 1
- HITCH LIFT CAPACITY, LB
- 3,306
- AT 24 INCHES BEHIND LINK ENDS, LB
- 2,425
5045 DIMENSIONS
- OVERALL LENGTH, IN, 3P
- 127.4
- OVERALL WIDTH, IN
- 64.9
- HEIGHT TO TOP OF ROPS, IN
- 5045S/H - 98.4 | 5045CS/CH - 97
- WHEELBASE, IN
- 71.1
- MIN. GROUND CLEARANCE, IN
- 15.5
- WEIGHT, LB
- 5045S/H - 3,831 | 5045CS/CH - 4,349
5045 PTO
- 540, 540E
- 584, 791
5045 LOADER - MODEL BBL500
- STANDARD BUCKET SIZE (IN.)
- 72
- MAXIMUM LIFT HEIGHT (IN.)
- 106.6
- DIG DEPTH (IN.)
- 3.1
- LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.)
- 2,700
- BREAKOUT FORCE (LBS.)
- 3,660
- SHIPPING WEIGHT (LBS.)
- 1,075
5045 BACKHOE - MODEL BBH500
- STANDARD BUCKET SIZE (IN.)
- 16
- MAXIMUM DIG DEPTH (IN.)
- 91.2
- SHIPPING WEIGHT (LBS.)
- 1,500

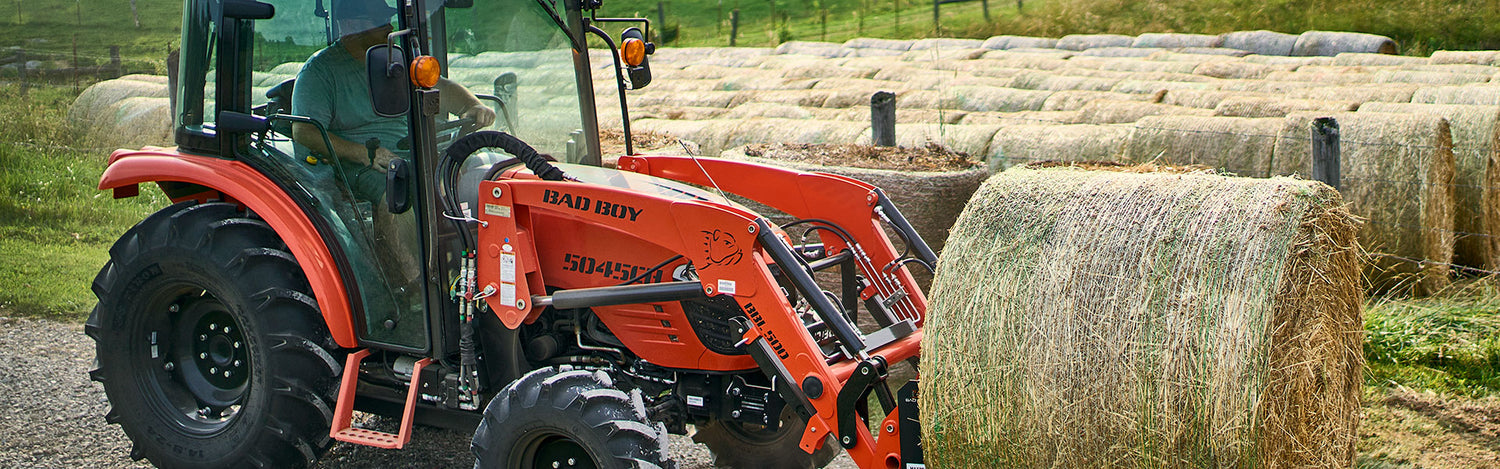

LIFT MORE THAN EVER BEFORE
The 5045 takes power, performance, and attitude to the next level with 2,700 lbs. Loader Lift Capacity.
A NEW KIND OF COMFORT
Combat fatigue during long workdays with our deluxe suspension seat. Feel the difference of a truly better ride.
TRANSMISSION OPTIONS
Choose between a Hydro Max Transmission or Shuttle Shift Transmission on all 50 Series models. You decide how you want to drive.
5055
Options MSRP Our Price
Tractor/ $39,379 $28,878Ag or Industrial Tires doesn't change pricing
- FEATURING:
- 55 HORSEPOWER
- 2,700 LBS. LOADER LIFT CAPACITY AT PINS
- HYDRO MAX OR SHUTTLE SHIFT TRANSMISSION OPTION
- OPTIONAL CLIMATE-CONTROLLED CAB WITH LEATHER, HEATED SEAT
- POWER STEERING
- EASY TO ADJUST PIN STYLE STABILIZER
- CRUISE CONTROL
- 4WD
PAYMENTS AS LOW AS
$394.00
PER MONTH (5055S)*
5055 TRACTOR SPECS
5055 ENGINE
- MODEL
- A2300T3-UTR_4
- FUEL SYSTEM
- WATER-COOLED DIESEL
- DISPLACEMENT, IN
- 139.5
- NUMBER OF CYLINDERS
- 4
- FUEL TANK SIZE, GAL
- 11.8
- RATED ENGINE POWER, HP
- 55
- RATED SPEED, RPM
- 2600
- MAX PTO POWER, HP
- 44
- DPF / SCR / DOC
- DPF / DOC
5055 TRANSMISSION
- TYPE
- 5055S/CS - SYNCHRO |5055H/CH - HST
- NUMBER OF GEARS
- 5055S/CS - 16F / 16R | 5055H/CH - 4 RANGE
5055 HYDRAULICS
- MAXIMUM TOTAL FLOW, GPM
- 5055S/CS - 16.4 | 5055H/CH - 15.7
- IMPLEMENT PUMP CAP, GPM
- 5055S/CS - 11.4 | 5055H/CH - 10.7
- STEERING PUMP CAP, GPM
- 5
- 3P CATEGORY
- 1
- HITCH LIFT CAPACITY, LB
- 3,306
- AT 24 INCHES BEHIND LINK ENDS, LB
- 2,425
5055 DIMENSIONS
- OVERALL LENGTH, IN, 3P
- 127.4
- OVERALL WIDTH, IN
- 64.9
- HEIGHT TO TOP OF ROPS, IN
- 5055S/H - 98.4 | 5055CS/CH - 97
- WHEELBASE, IN
- 71.1
- MIN. GROUND CLEARANCE, IN
- 15.5
- WEIGHT, LB
- 5055S/H - 3,836 | 5055CS/CH - 4,349
5055 PTO
- 540, 540E
- 584, 791
5055 LOADER - MODEL BBL500
- STANDARD BUCKET SIZE (IN.)
- 72
- MAXIMUM LIFT HEIGHT (IN.)
- 106.6
- DIG DEPTH (IN.)
- 3.1
- LIFT CAPACITY TO FULL HEIGHT AT PIVOT PIN (LBS.)
- 2,700
- BREAKOUT FORCE (LBS.)
- 3,660
- SHIPPING WEIGHT (LBS.)
- 1,075
5055 BACKHOE - MODEL BBH500
- STANDARD BUCKET SIZE (IN.)
- 16
- MAXIMUM DIG DEPTH (IN.)
- 91.2
- SHIPPING WEIGHT (LBS.)
- 1,500
EVEN MORE POWER
This tractor features the most horsepower in our lineup. That gives you up to 2,700 lbs. loader lift capacity to get more done.
PICK YOUR SET-UP
The 5055 is available in with a climate-controlled factory cab or an open station. Choose the one that’s right for you, and work with an attitude your way.
VERSATILE HITCH
Our 3-point hitch is built right with heavy-gauge, welded and fabricated steel. You can put it to good use with our wide range of tractor implements.
